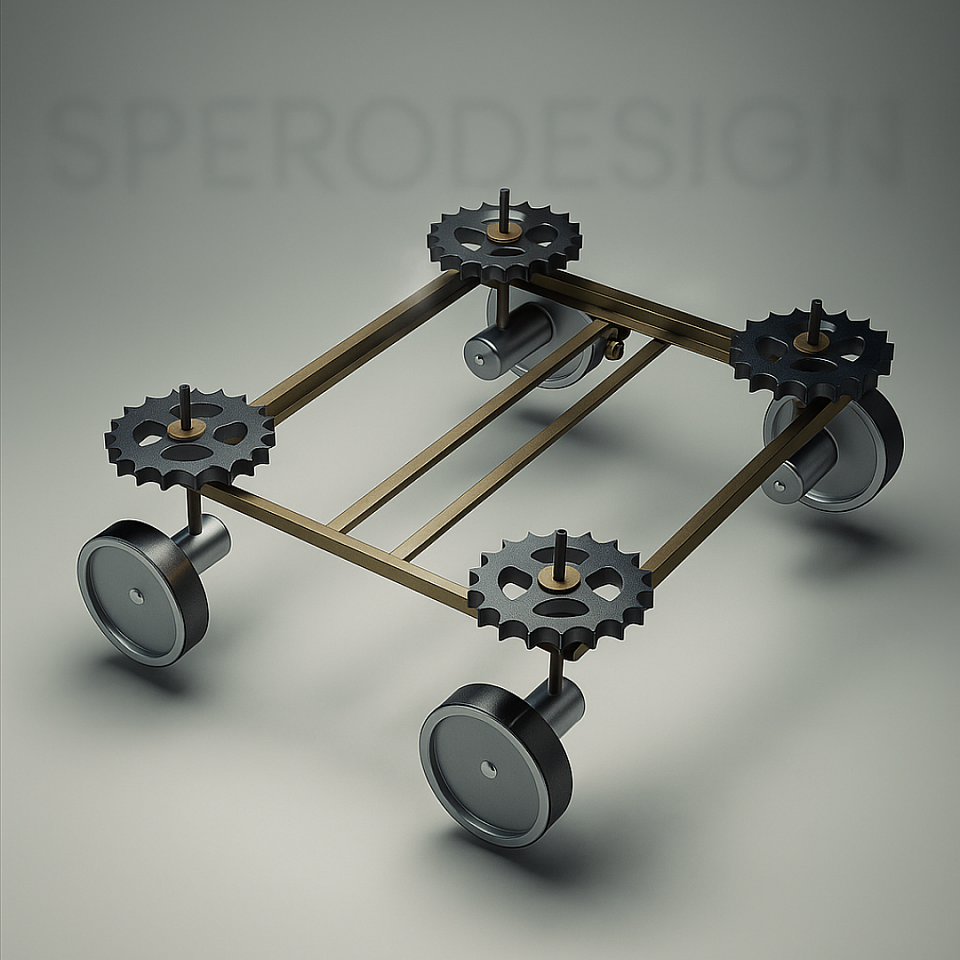

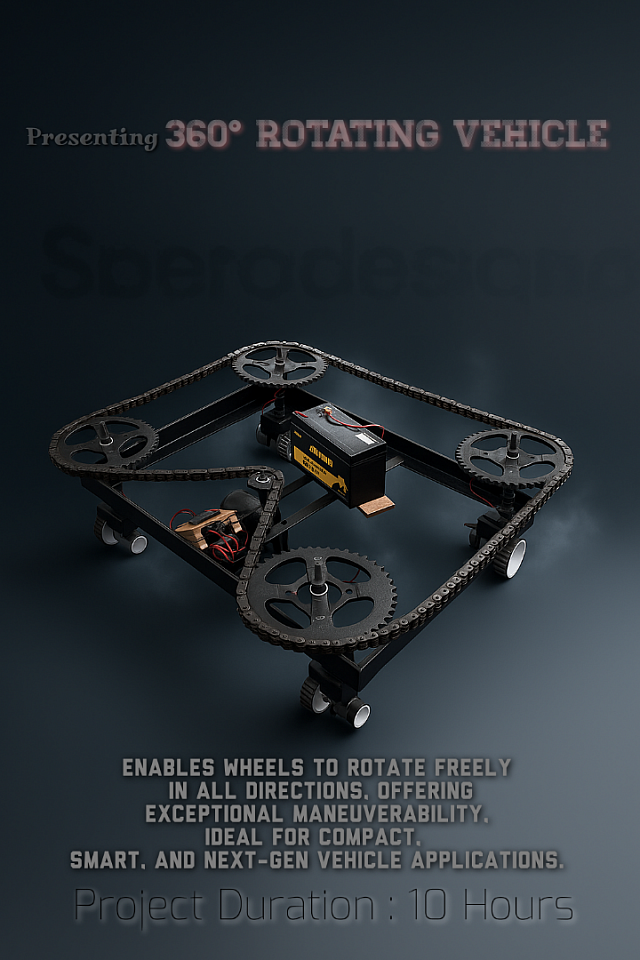

Prototype of Fully Rotational Vehicle
A Fully (360°) Rotational vehicle prototype represents a significant advancement in automotive technology, designed to address urban mobility challenges and enhance maneuverability in congested environments. This innovative vehicle integrates advanced engineering principles, sophisticated control systems, and cutting-edge design features to achieve unprecedented rotational capabilities.
Minor Project
Let’s build something incredible together.
A showcase of smart, functional CAD designs — built with precision and creativity.
From 3D models to detailed assemblies, each project reflects my skills in SolidWorks & AutoCAD.
🚀 Designed for real-world use.
🎯 Perfect blend of engineering + aesthetics.
💡 Ready to turn your idea into reality?
Shubhang ojha
Design and Structure
The prototype boasts a compact and robust design, optimized for urban settings. Its body is typically constructed from lightweight, durable materials such as carbon fiber composites, reducing the overall weight and improving fuel efficiency. The vehicle's architecture is modular, allowing for easy maintenance and upgrades.
Rotational Mechanism
The core feature of this vehicle is its ability to rotate 360 degrees. This is made possible by an advanced wheel system, where each wheel can independently swivel and rotate. The wheels are equipped with omnidirectional technology, often utilizing mecanum or spherical wheels that allow for movement in any direction without changing the vehicle's orientation. This system is controlled by a sophisticated electronic control unit (ECU), which processes driver inputs and adjusts the wheel angles and speeds accordingly to achieve the desired movement.
Powertrain and Control
The vehicle is typically powered by an electric or hybrid powertrain to promote sustainability. Electric motors are placed directly at each wheel hub, providing precise control over wheel movement and enhancing the rotational capabilities. The ECU integrates with advanced sensors, including LIDAR, cameras, and ultrasonic sensors, to provide real-time feedback on the vehicle’s surroundings. This allows for seamless integration with autonomous driving systems, enabling the vehicle to navigate complex urban environments with minimal human intervention.
Safety and Stability
Safety is a paramount consideration in the design of the 360° rotational vehicle. The vehicle is equipped with advanced stability control systems that ensure a smooth and stable ride, even during complex maneuvers. The omnidirectional wheels are designed to provide optimal traction and stability on various road surfaces. Additionally, the vehicle is equipped with multiple airbags, reinforced crumple zones, and an advanced driver-assistance system (ADAS) to protect occupants in the event of a collision.
Practical Applications
The 360° rotational vehicle has a wide range of practical applications. In urban environments, it can easily navigate narrow streets, tight parking spaces, and congested traffic, reducing the time and effort required for parking and maneuvering. For delivery services, the vehicle’s ability to move sideways and rotate on the spot enhances efficiency in loading and unloading goods in tight spaces. Furthermore, its compact size and agility make it ideal for use in emergency response scenarios, where quick and precise movement is crucial.
Future Prospects
As technology advances, the 360° rotational vehicle prototype is expected to evolve further. Future iterations may incorporate more advanced autonomous driving capabilities, improved energy efficiency, and enhanced connectivity features. The integration of artificial intelligence (AI) could enable predictive maintenance and personalized driving experiences, further enhancing the vehicle’s appeal
Conclusion
In conclusion, the Fully (360°) rotational vehicle prototype represents a forward-thinking approach to urban mobility, combining advanced engineering, innovative design, and cutting-edge technology to create a versatile and efficient transportation solution. Its ability to rotate 360 degrees offers significant advantages in maneuverability, making it a promising solution for the future of urban transportation.
